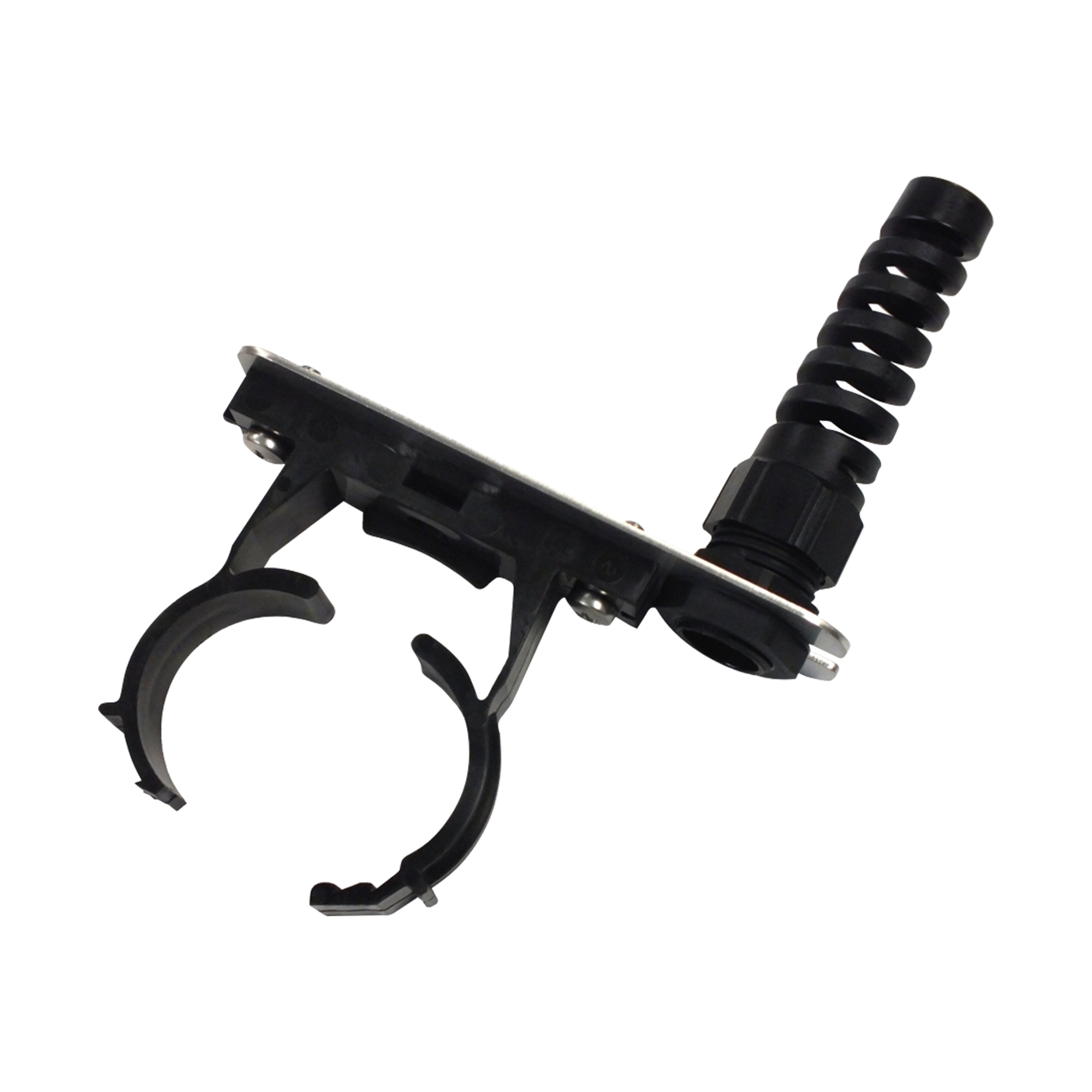

For the fastening of the floating switch at HT-sewage pipe DN 50
can also be used for distribution tapprepared for M20 cable gland
can also be used for distribution tapprepared for M20 cable gland
material: polypropylene and barium sulfatedimensions (Ø × H, in mm): 50 × 59clamping range (mm): 6.5 – 10.7

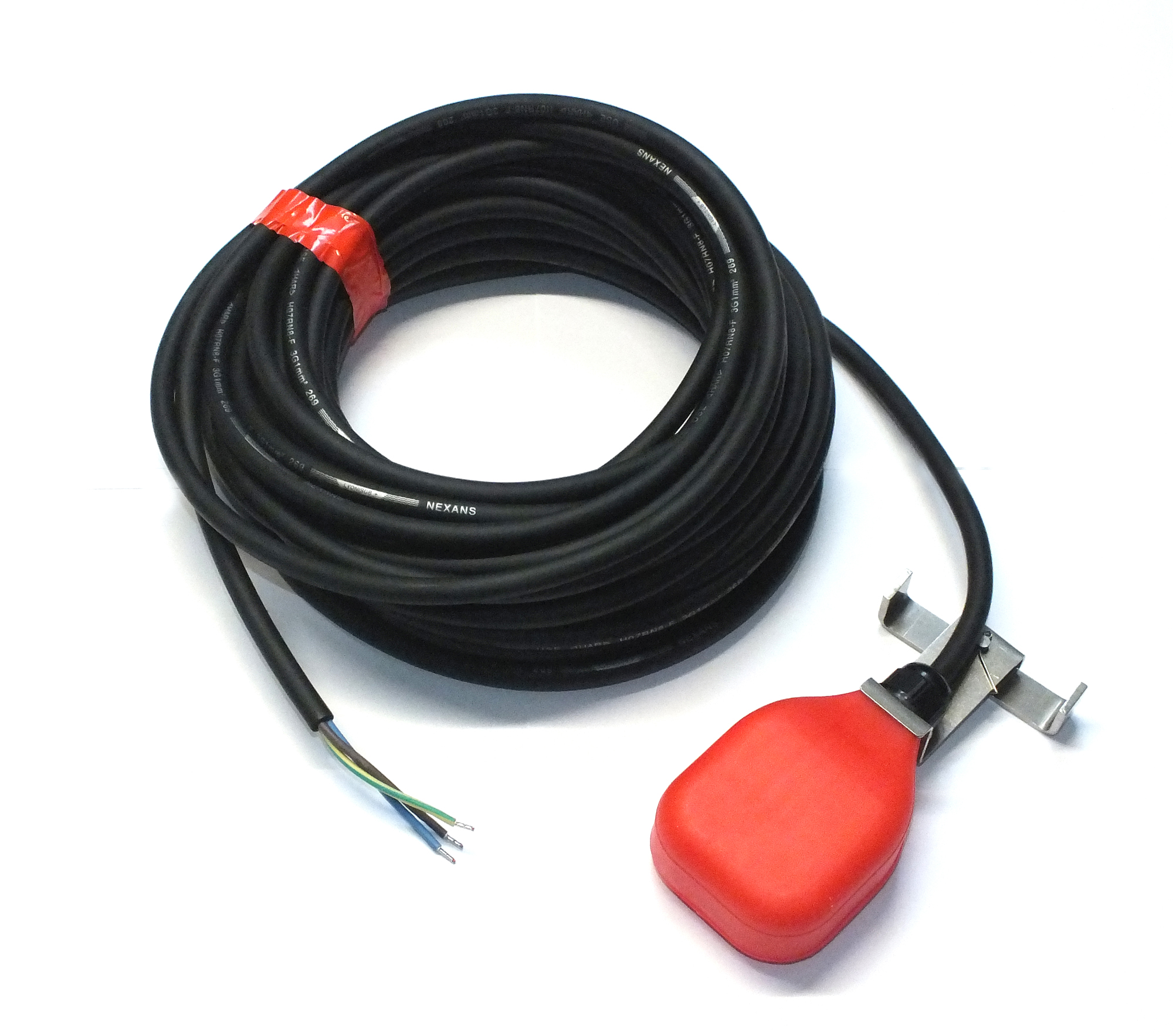

Operating voltage up to 230 V , 10 (8) Aswitching hysteresis 75/90 mmEnds stripped, with ferrulesTop on/to drain
Operating voltage up to 230 V , 10 (8) Aswitching hysteresis 75/90 mmEnds stripped, with ferrulesTop on/to drain
Operating voltage up to 230 V , 10 (8) Aswitching hysteresis 75/90 mmEnds stripped, with ferrulesTop on/to drain
Operating voltage up to 230 V , 10 (8) Aswitching hysteresis 75/90 mmEnds stripped, with ferrulesTop on/to drain
Operating voltage up to 230 V , 10 (8) Aswitching hysteresis 75/90 mmEnds stripped, with ferrulesTop on/to drain
type: closeroperating voltage up to 230 V/ 0.1–10 Aminimum switching capacity 1 mA at 4 V DCwith bulb(weight 380 g)cable length: 15 mswitching hysteresis: 20 mm
type: closeroperating voltage up to 230 V/0.1–10 Aminimum switching capacity 1 mA at 4 V DCwith bulb(weight 380 g)cable length: 30 mswitching hysteresis: 20 mm

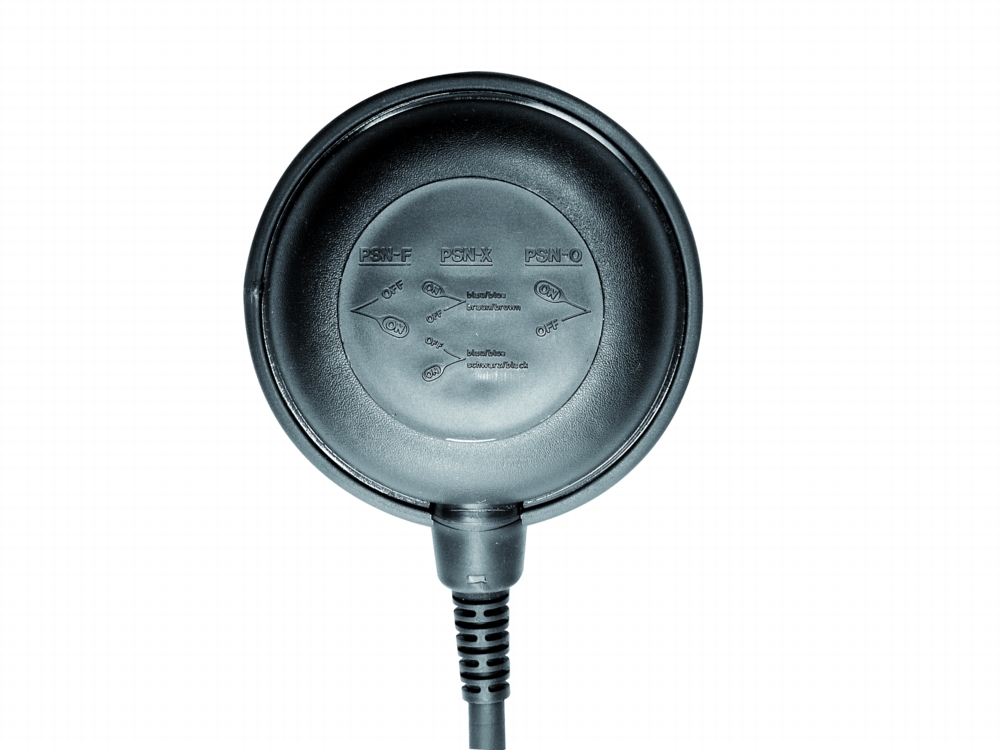

Operating voltage from 9 - 230Vends 100 mm stripped, with wire end ferrulesswitching hysteresis 100 mmType normally closed
AQUATO® TOPSELLER
AQUATO® menu structurefor AQUATO SBR, fixed bed and fluidized bed systems as well as trickling filter systems and plant beds4 cables with square plugs for the valves Possibility of pressure and current monitoringintegrated power failure notificationuse for 3 or 4 valve manifoldsoptional connection of a clear water pumpIOT capability / portal required
AQUATO® menu structureuniversal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds2 float switch inputs6 individually assignable outputseasy connection of existing valves and aggregatesinternal thermostat for control of a cabinet ventilation or heating systempower failure message as well as current & pressure monitoringdrain class C, N, D, D+P, D+H, D+P+Hconnection of an additional high water detectoralso suitable for plants of other manufacturers2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
submersible up to 12 m deepsuitable for pumping clean, chemically neutral waterfor use in cisterns and rainwater tanksintegrated pressure switch for automatically switching the pump on and offintegrated floating switch as dry-run protection
material: PE100, SDR11, PN10, butt-welded from mould fittings3x re-inforcded female thread 2"horizontal discharge connection suitable for installation of duplex pumping systemsfor rain- and greywater up to 17 m³/h flowperfect in combination with 2x pipework set DN 50
Housing is supplied without lock, key and without base plate for the compressor
including fastening setconnection pipe sideways G 1" malewithout connection cable
pre-assembled set consists of:1× ball valve 2"1× non-return valve 2"1× PP elbow 2"2× clamp coupling 2" × Ø 63 mm
