pre-assembled, ready-to-connect installation set for sumps from 500 × 500 mmfor the alternating operation of two submersible pumpssuitable for U3 KS (special), U5 KS and U6 K ES (pumps not included)2× GR 32 guide-rail system (quick self-coupling of pumps)2× non-return valve R32, pressure pipe DN 322× elastic connectors for pressure pipe OD 40 mm, straight and elbowplug-ready EasyLogo pump control unit with alarm circuit included in scope of delivery
pre-assembled, ready-to-connect installation set for shafts from 400 × 300 mmsuitable for U3 KS (special), U5 KS and U6 K ES (pump not included)GR 32 guide-rail system (quick self-coupling of pumps)non-return valve R32, pressure pipe DN 32straight elastic connection for pressure pipe OD 40 mm
enables manual pumping down to a water level of less than 1 cm
mounting kit for installing a pump with quick self-coupling in a sump pumpsuitable for U3 KS (special), U5 KS and U6 K ES (pump not included)
without self-locking nut on impeller
material: nodular cast iron (GGG40)working pressure: 10 barmaximum temperature: 100 °Cepoxy coating
GRP housing with G 1 ¼" female connectiondrain plug to drain the pressure pipe
enables flat suction to a residual water level of 3 mm
material: PE100, SDR11, PN10, butt-welded from mould fittings3x re-inforcded female thread 2"horizontal discharge connection suitable for installation of duplex pumping systemsfor rain- and greywater up to 17 m³/h flowperfect in combination with 2x pipework set DN 50

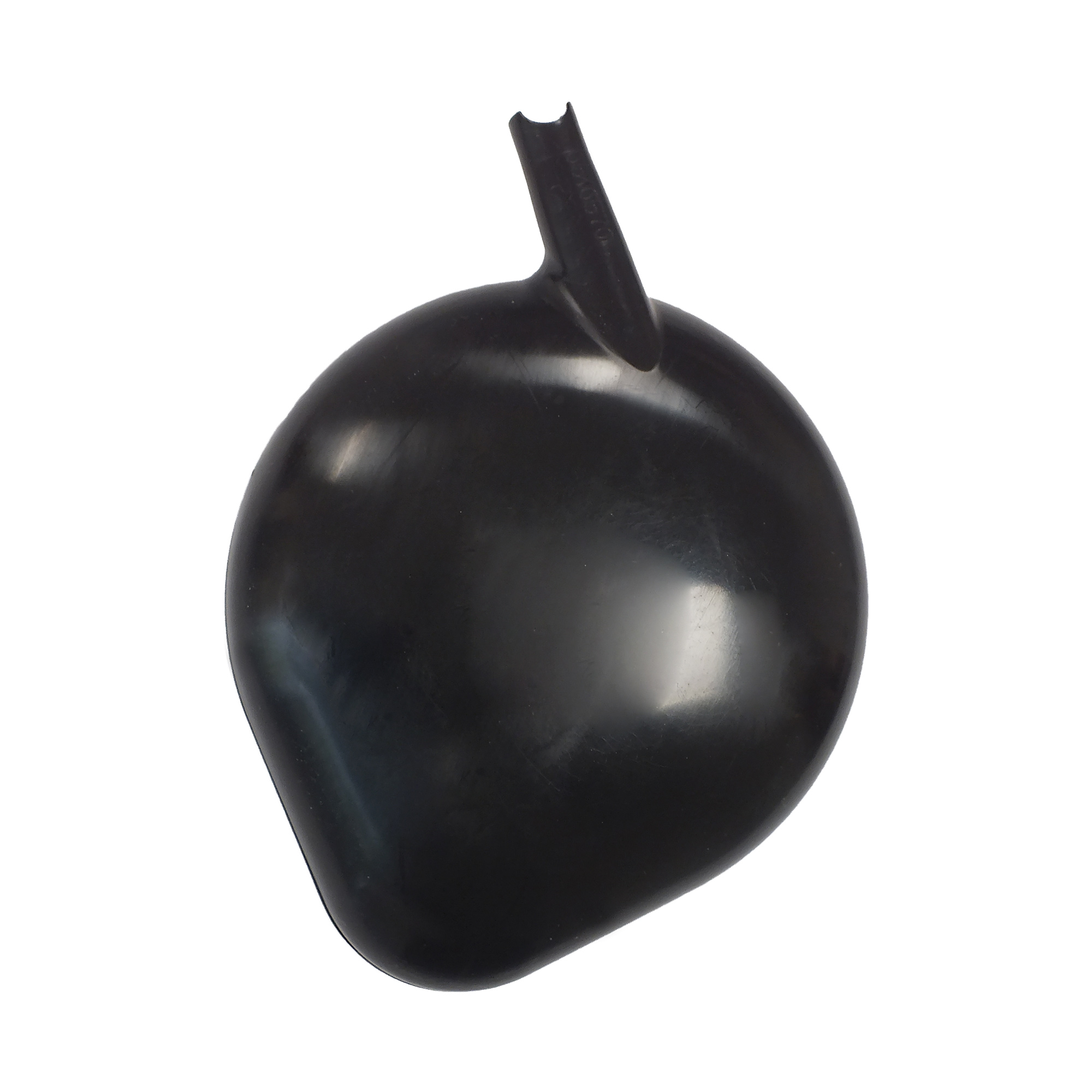

can be used from shaft size 300 × 300 mm or 300 mm diameter to be replaced against pump's standard float U3–U6
pre-assembled set consists of:1× ball valve 2"1× non-return valve 2"1× PP elbow 2"2× clamp coupling 2" × Ø 50 mm
AQUATO® TOPSELLER
AQUATO® menu structurefor AQUATO SBR, fixed bed and fluidized bed systems as well as trickling filter systems and plant beds4 cables with square plugs for the valves Possibility of pressure and current monitoringintegrated power failure notificationuse for 3 or 4 valve manifoldsoptional connection of a clear water pumpIOT capability / portal required
AQUATO® menu structureuniversal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds2 float switch inputs6 individually assignable outputseasy connection of existing valves and aggregatesinternal thermostat for control of a cabinet ventilation or heating systempower failure message as well as current & pressure monitoringdrain class C, N, D, D+P, D+H, D+P+Hconnection of an additional high water detectoralso suitable for plants of other manufacturers2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
submersible up to 12 m deepsuitable for pumping clean, chemically neutral waterfor use in cisterns and rainwater tanksintegrated pressure switch for automatically switching the pump on and offintegrated floating switch as dry-run protection
material: PE100, SDR11, PN10, butt-welded from mould fittings3x re-inforcded female thread 2"horizontal discharge connection suitable for installation of duplex pumping systemsfor rain- and greywater up to 17 m³/h flowperfect in combination with 2x pipework set DN 50
Housing is supplied without lock, key and without base plate for the compressor
including fastening setconnection pipe sideways G 1" malewithout connection cable
pre-assembled set consists of:1× ball valve 2"1× non-return valve 2"1× PP elbow 2"2× clamp coupling 2" × Ø 63 mm
