Schmutzwasserpumpen

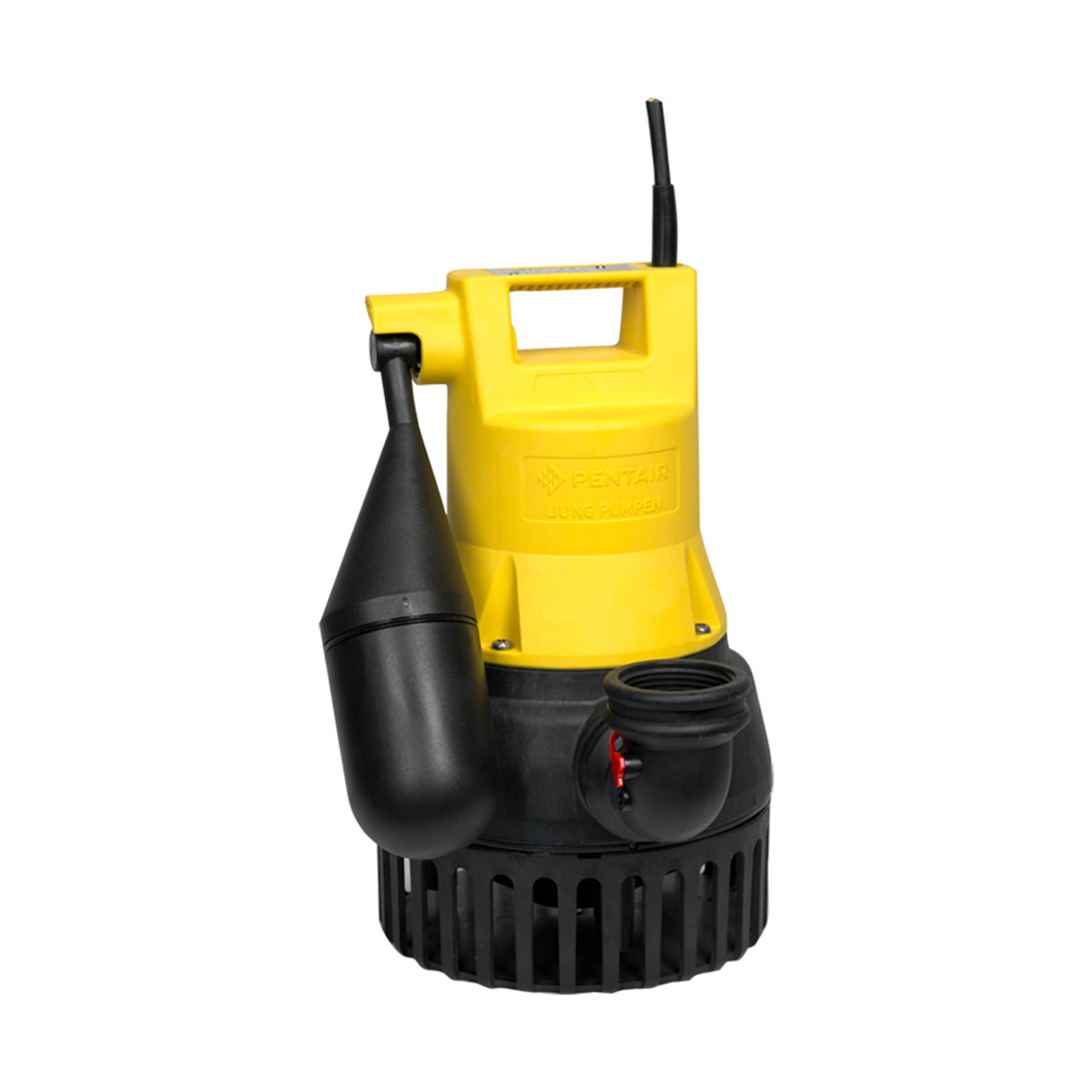

complete package with U 5 KS submersible pump, 10 m cable and plugmax. delivery head 8 mmax. flow rate 11.5 m³/hrobust plastic carrying basket 300 × 400 mm12.5 m fire hose with C-coupling on both sidespump holder and clip for fixing the level switch

pump set, ideal for pumping drainage and ground water  can be used in drainage shafts with sand traps from 280 mm diameter max. delivery head 9 mWSmax. flow rate 15.5 m³/h integrated level switch for narrow shafts cable end with connector housing and integrated H-0-A switch pump can be activated manually with float in OFF-position volute with 20 mm free passage and removable strainer pre-assembled with R32 non-return valve and stainless steel safety catch GRP housing, pressure connection hose nozzle d40 with vertical discharge protection class IP68, longitudinally watertight moulded cable entry dry-run safe, mechanical seal with oil chamber on the media side speed 2900 1/min, motor protection winding thermostat

conveying data:Temperature: max. 40 °CImmersion depth: max. 10.0 mimpeller: VORTEX impeller 1.4301shaft seal: double mechanical seal in oil sealsealed ball bearingsdischarge port G 2" femalehousing: 1.4301

Set of 5 bagsfor self-fillingfilled useful length: 72 cmweight including sand: 15 kg

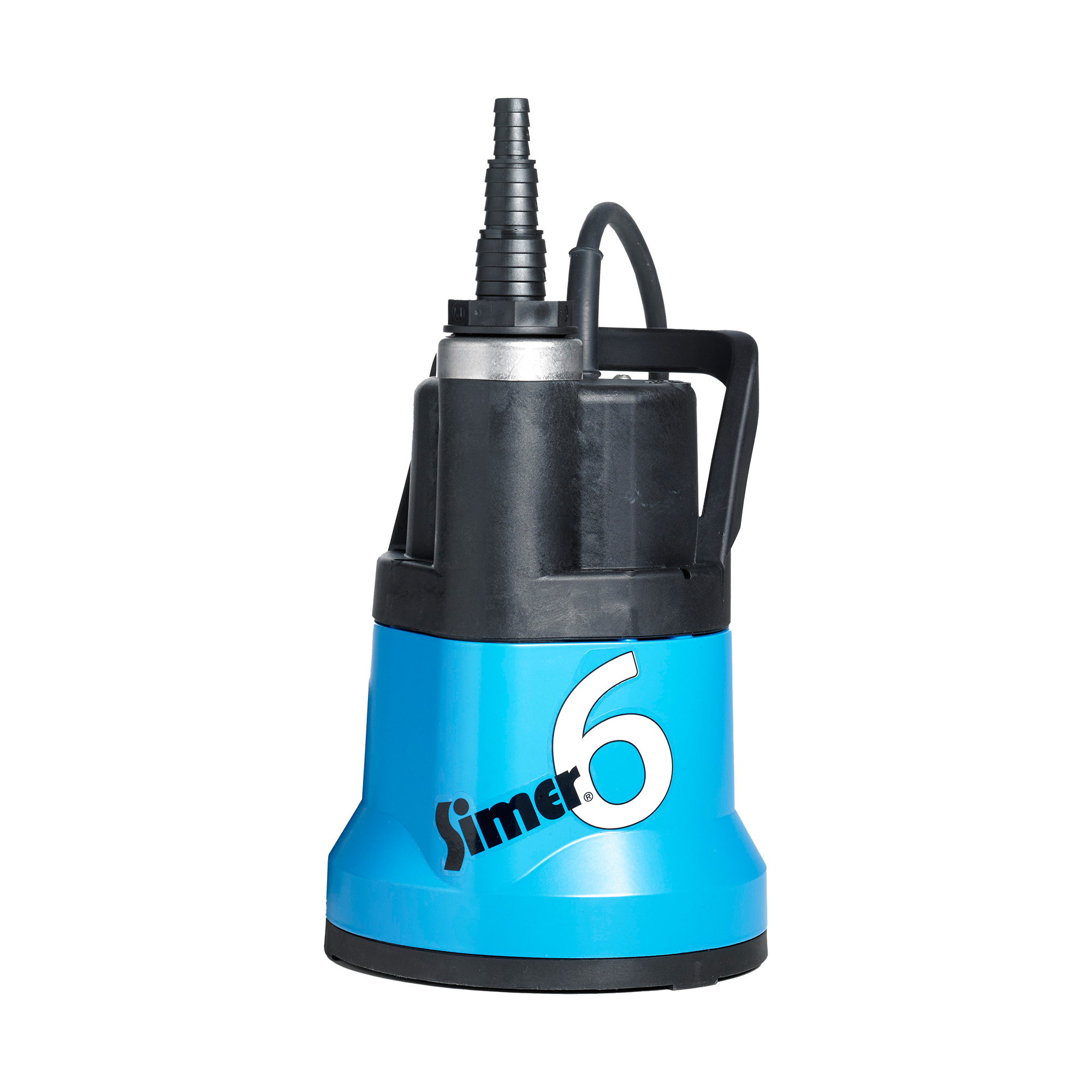

for pumping slightly polluted water in mobile applicationsflat suction up to a water level of 2 mmmax. delivery head 6.5 mWSmax. flow rate 6 m³/hmotor housing made of die-cast aluminium, pressure connection 1¼" with vertical dischargestepped hose nozzle and integrated non-return flapprotection class IP68, dry-run safe, motor protection winding thermostatweight: 5.2 kg

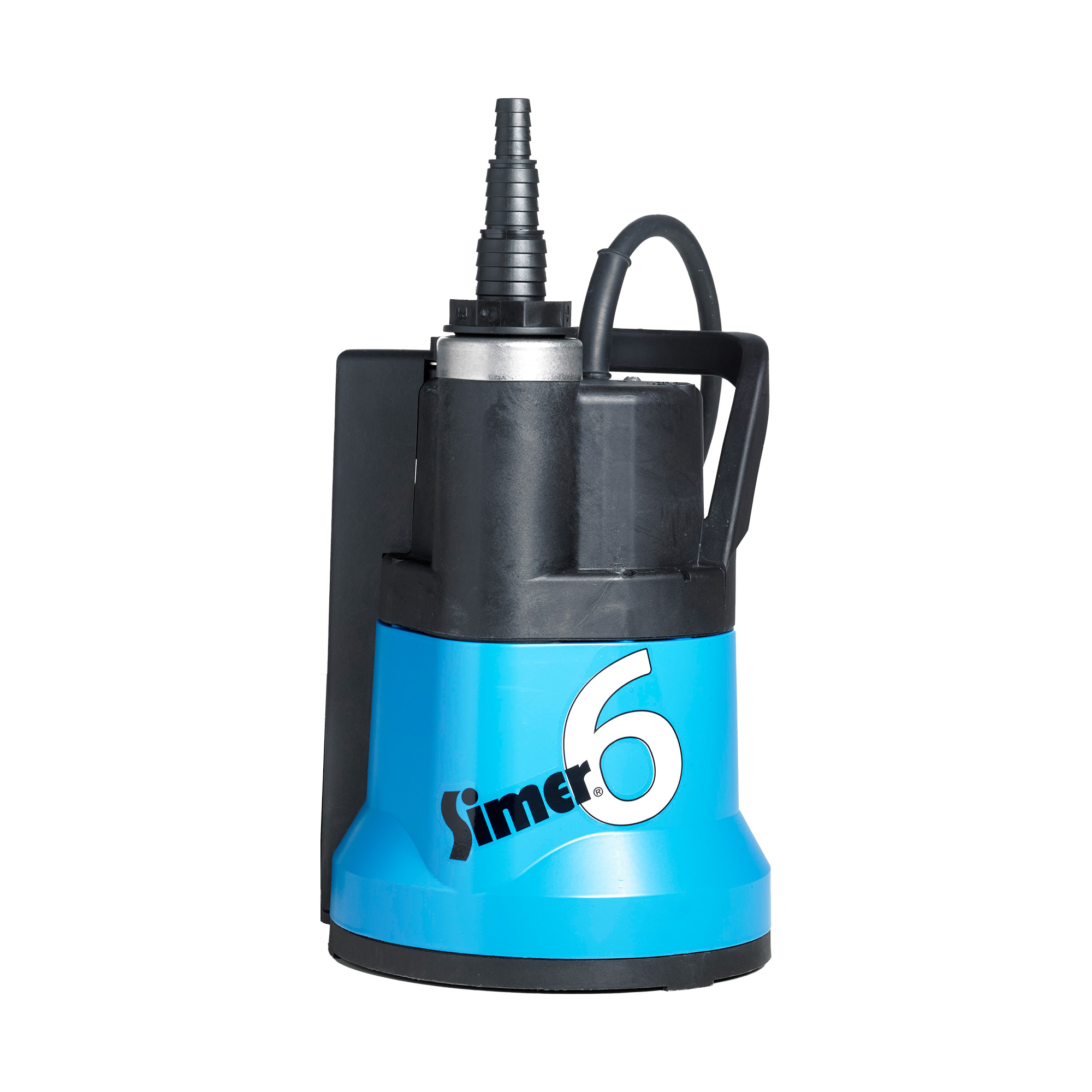

for pumping slightly polluted water in mobile applicationsflat suction up to a water level of 2 mmmax. delivery head 6.5 mWSmax. flow rate 6 m³/hintegrated probe switch for automatic operationmotor housing made of die-cast aluminium, pressure connection 1¼" with vertical dischargestepped hose nozzle and integrated non-return flapprotection class IP68, dry-run safe, motor protection winding thermostatweight: 5.2 kg

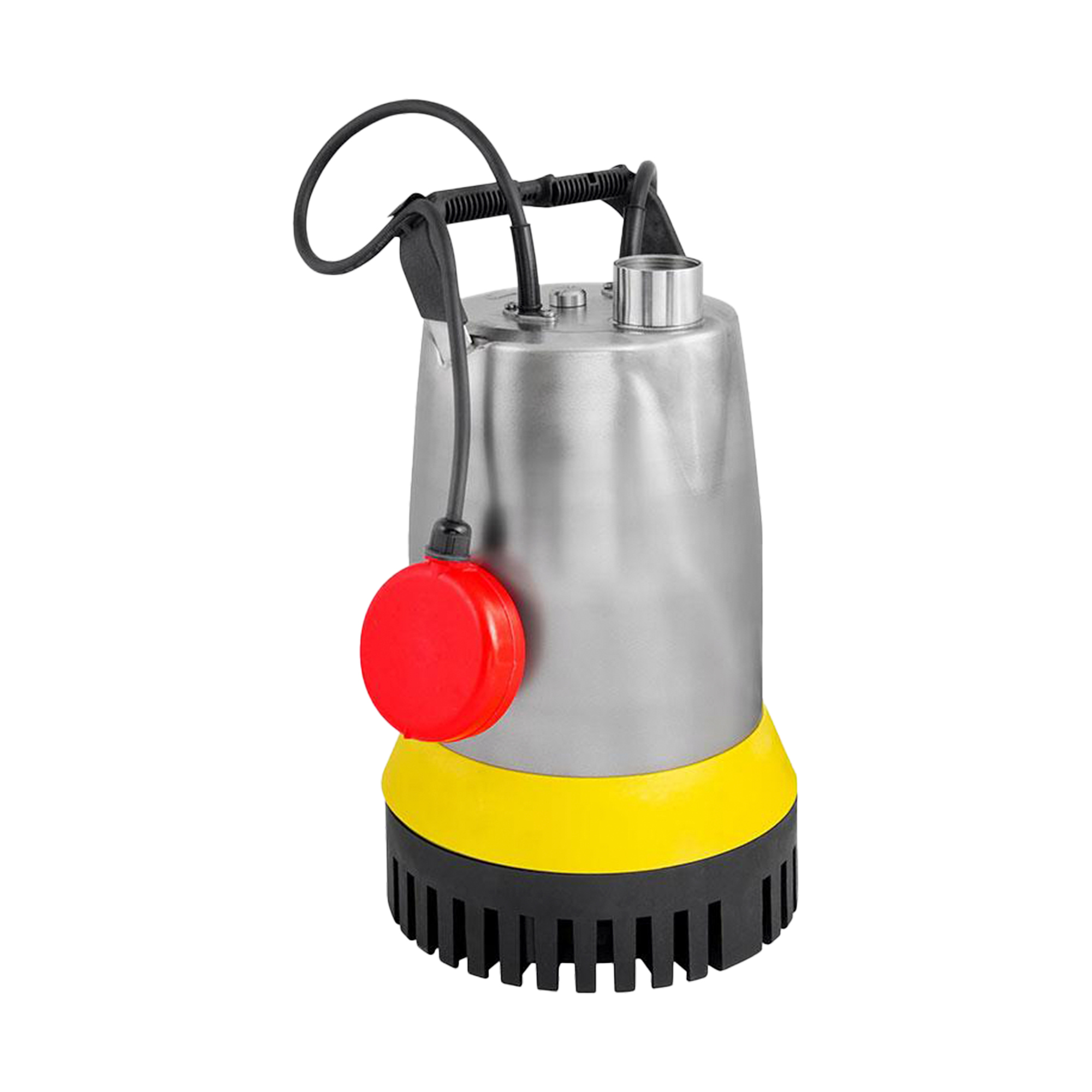

for pumping domestic wastewater without faeces and rainwatermax. delivery head 10 mWS, max. flow rate 24.5 m³/hintegrated, adjustable float switchvolute with 10 mm free passage and strainerstainless steel housing, pressure connection 1½" and vertical dischargedry-running safe, double mechanical seal and oil chamberspeed 2900 1/min, motor protection Winding thermostatweight: 20 kg

for pumping domestic wastewater without faeces and rainwatermax. delivery head 7 mWSmax. flow rate 7 m³/hintegrated, close-fitting level switchcan be used in particularly narrow shafts from 220 mm diametervolute with 10 mm free passage and removable strainerflushing openings for self-cleaning of the pump sumpstainless steel housing, pressure connection 1¼" and vertical dischargehose nozzle and integrated non-return flapprotection class IP68, longitudinally watertight moulded cable entrydry-running safe, radial shaft seals on the media side with oil chamberspeed 2900 1/min, motor protection winding thermostat

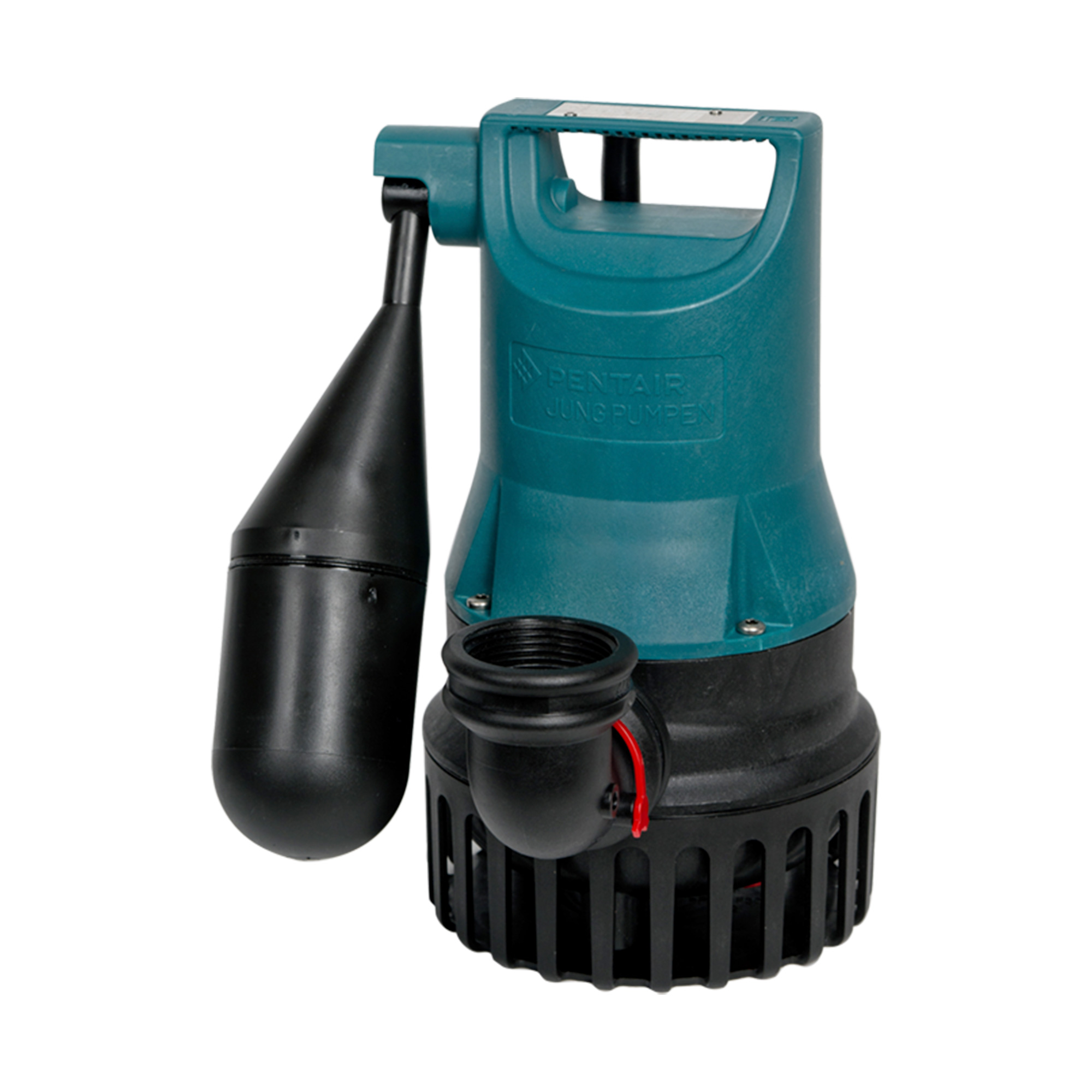

for pumping domestic wastewater without faeces and drainage water special version for aggressive media up to max. 15% salinity max. delivery head 7 mWSmax. flow rate 6.5 m³/h integrated level switch volute with 10 mm free passage and removable strainer GRP housing, pressure connection 1¼" (DN 32) with horizontal discharge connection elbow with vent opening activatable flushing device for reducing deposits in pump sump  protection class IP68, longitudinally watertight cable entry dry-running safe, mechanical seal and oil chamber on the media side speed 2900 1/min, motor protection winding thermostat

for pumping domestic wastewater without faeces max. delivery head 7 mWSmax. flow rate 6.5 m³/h integrated level switch volute with 10 mm free passage and removable strainer  GRP housing, pressure connection 1¼" (DN 32) with horizontal discharge connection elbow with vent opening activatable flushing device for reducing deposits in pump sump  protection class IP68, longitudinally watertight cable entry dry-running safe, radial shaft seals on media side with oil chamber speed 2900 1/min, motor protection winding thermostat

for pumping domestic wastewater without faeces max. delivery head 8 mWSmax. flow rate 11 m³/h integrated level switch volute with 20 mm free passage and removable strainer GRP housing, pressure connection 1¼" (DN 32) with horizontal discharge connection elbow with vent opening protection class IP68, longitudinally watertight cable entry dry-running safe, radial shaft seals on the media side with oil chamber speed 2900 1/min, motor protection winding thermostat

for pumping domestic wastewater without faeces, rain- and ground water max. delivery head 9 mWSmax. flow rate 15.5 m³/h integrated level switch volute with 20 mm free passage and removable strainer  GRP housing, pressure connection 1¼" (DN 32) with horizontal discharge connection elbow with vent opening protection class IP68, longitudinally watertight cable entry dry-running safe, mechanical seal with oil chamber on the media side speed 2900 1/min, motor protection winding thermostat
