blue float switch for sewage pumping stations in ATEX operation
blue float switch for sewage pumping stations in ATEX operation
two pressure bells made of cast iron, with tube connectors and glands, 2× 10 m air tube

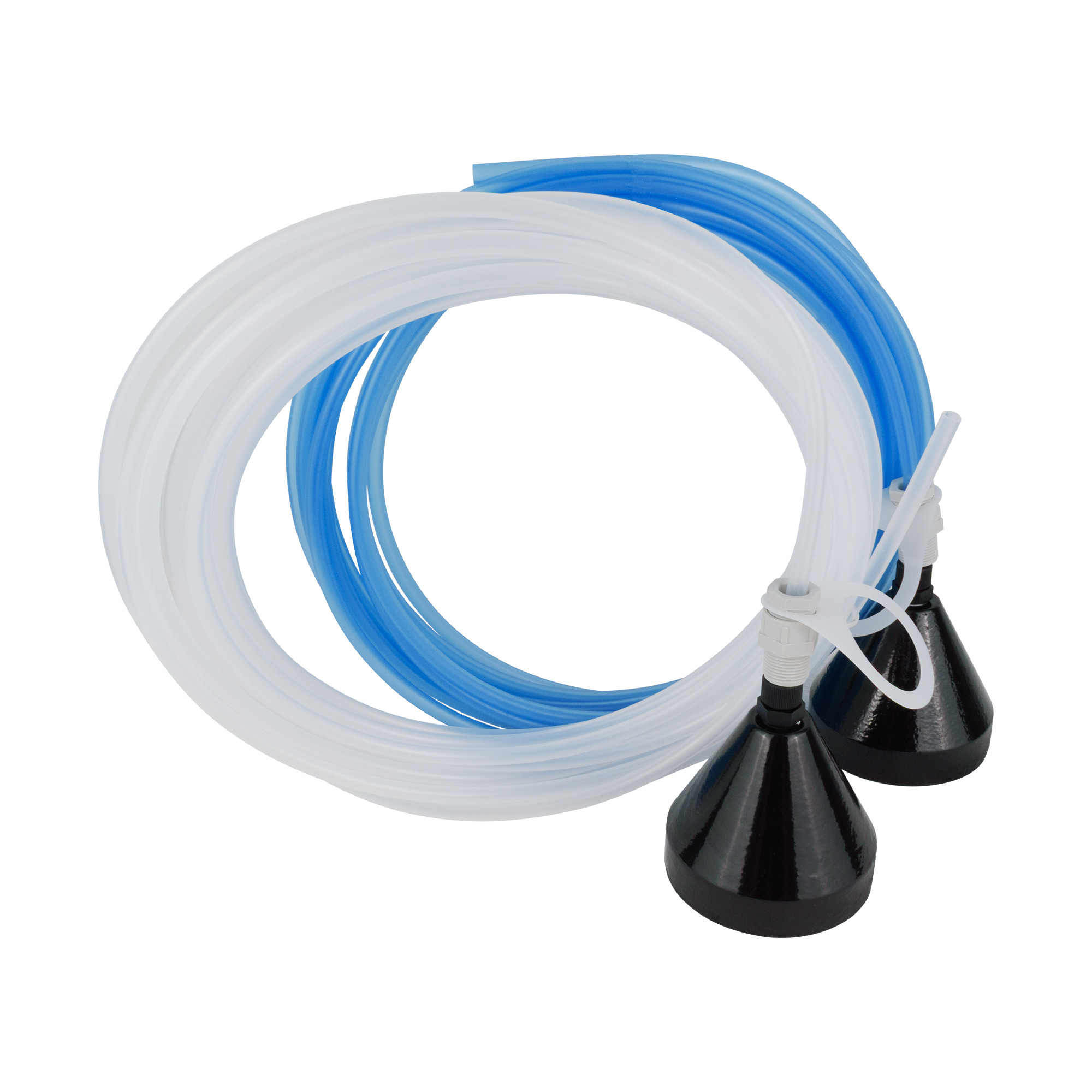

two pressure bells made of cast iron, with tube connectors and glands, 2× 20 m air tube

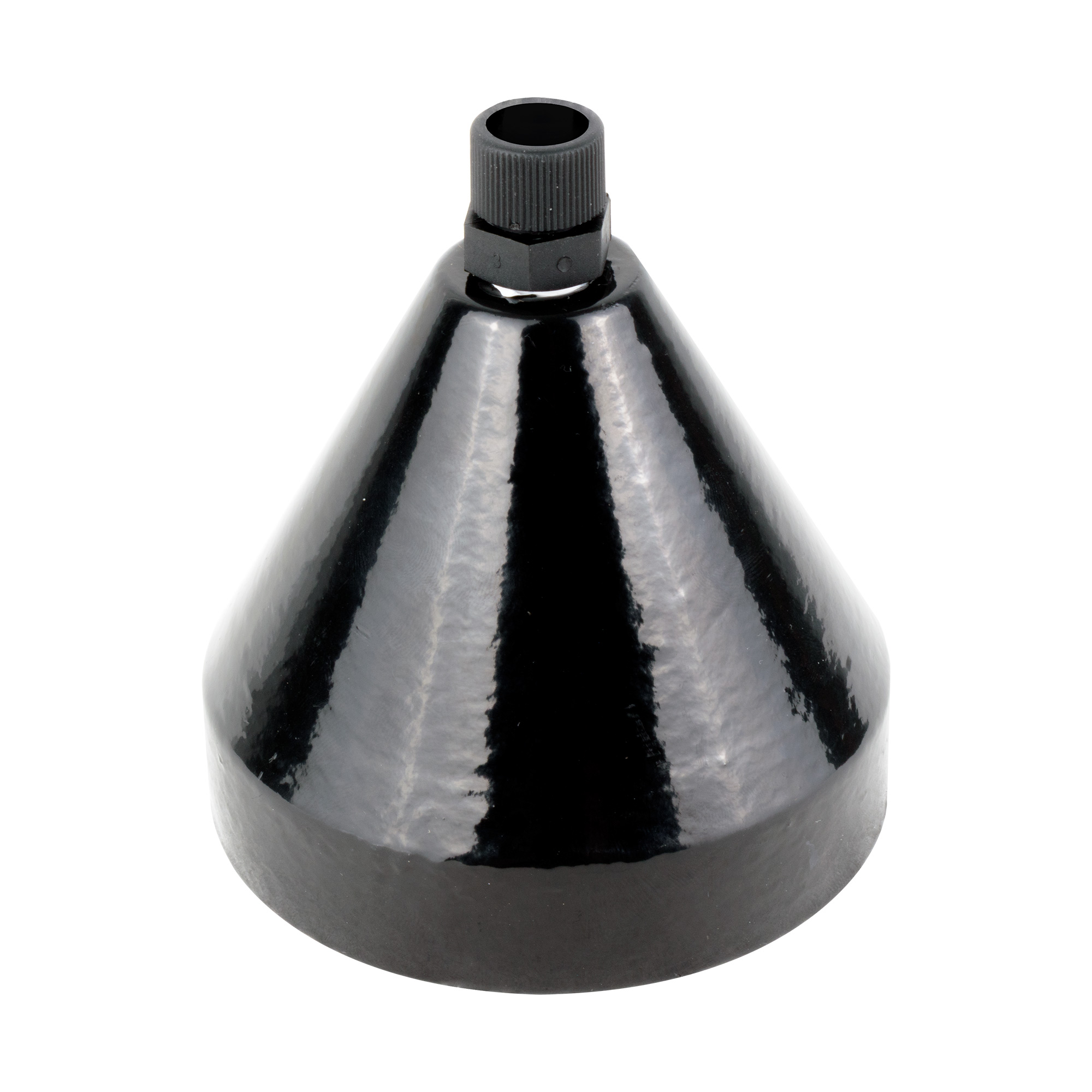

material: cast iron
material: polypropylene and barium sulfatedimensions (Ø × H, in mm): 50 × 59clamping range (mm): 6.5 – 10.7

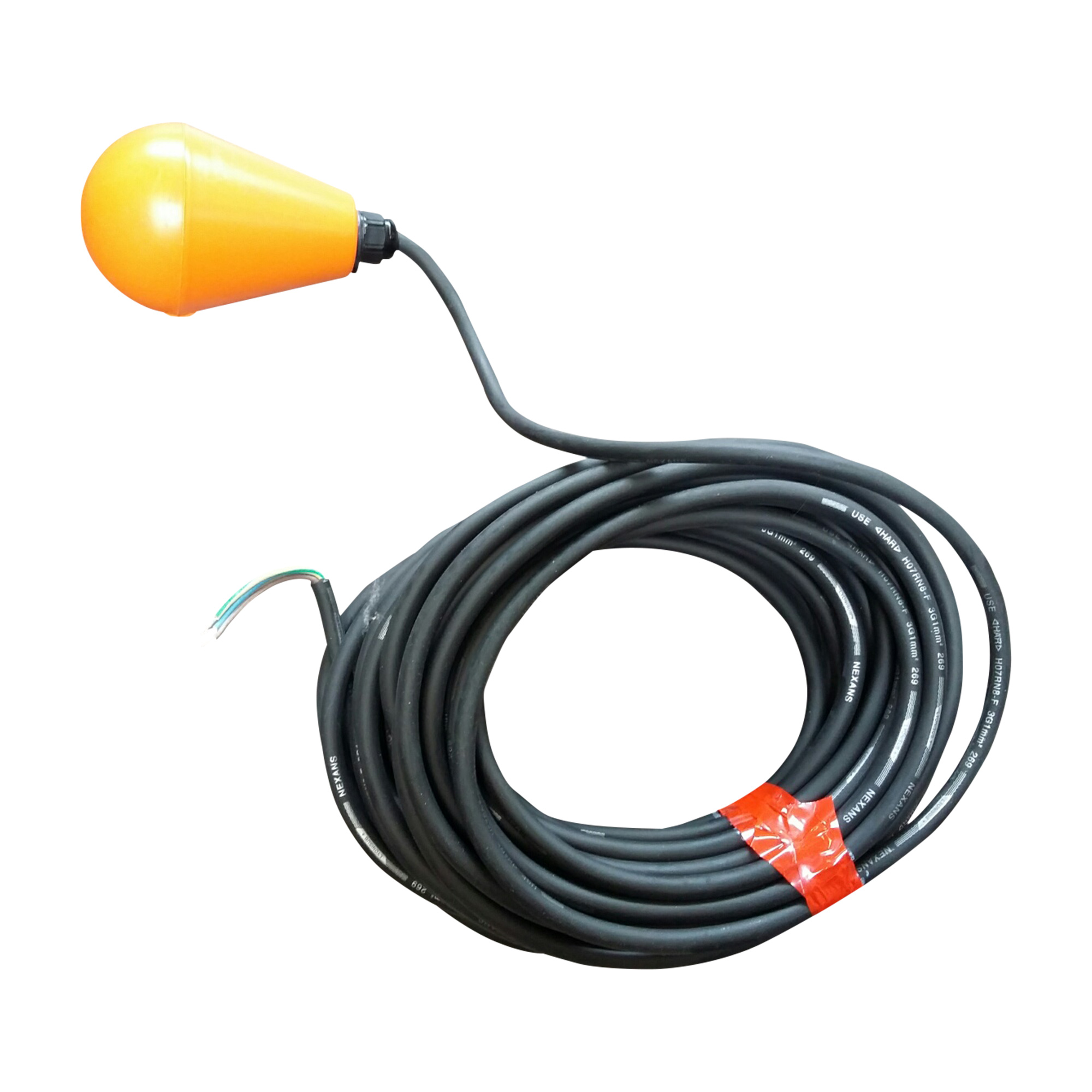

type: closeroperating voltage up to 230 V/ 0.1–10 Aminimum switching capacity 1 mA at 4 V DCwith bulb(weight 380 g)cable length: 15 mswitching hysteresis: 20 mm

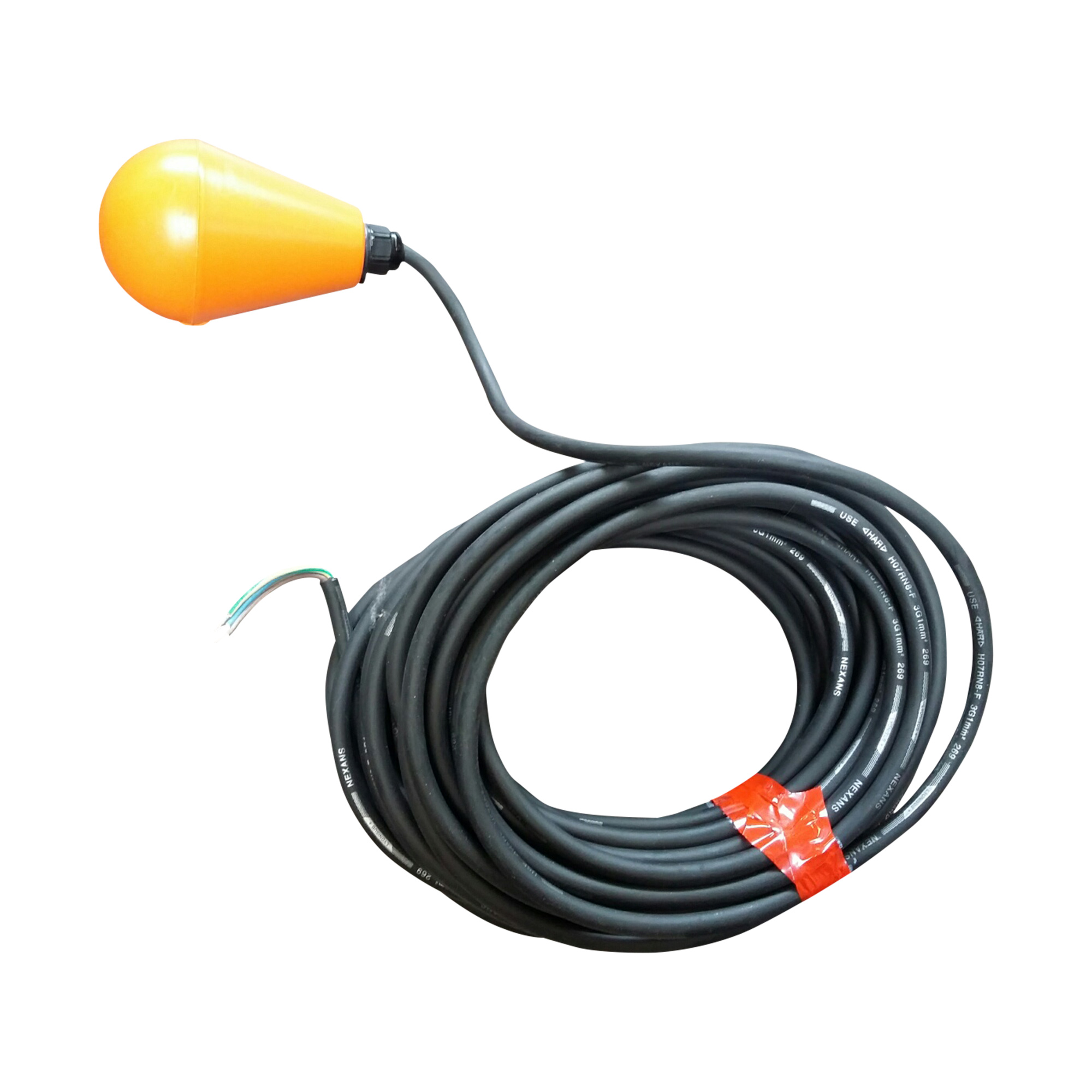

type: closeroperating voltage up to 230 V/0.1–10 Aminimum switching capacity 1 mA at 4 V DCwith bulb(weight 380 g)cable length: 30 mswitching hysteresis: 20 mm

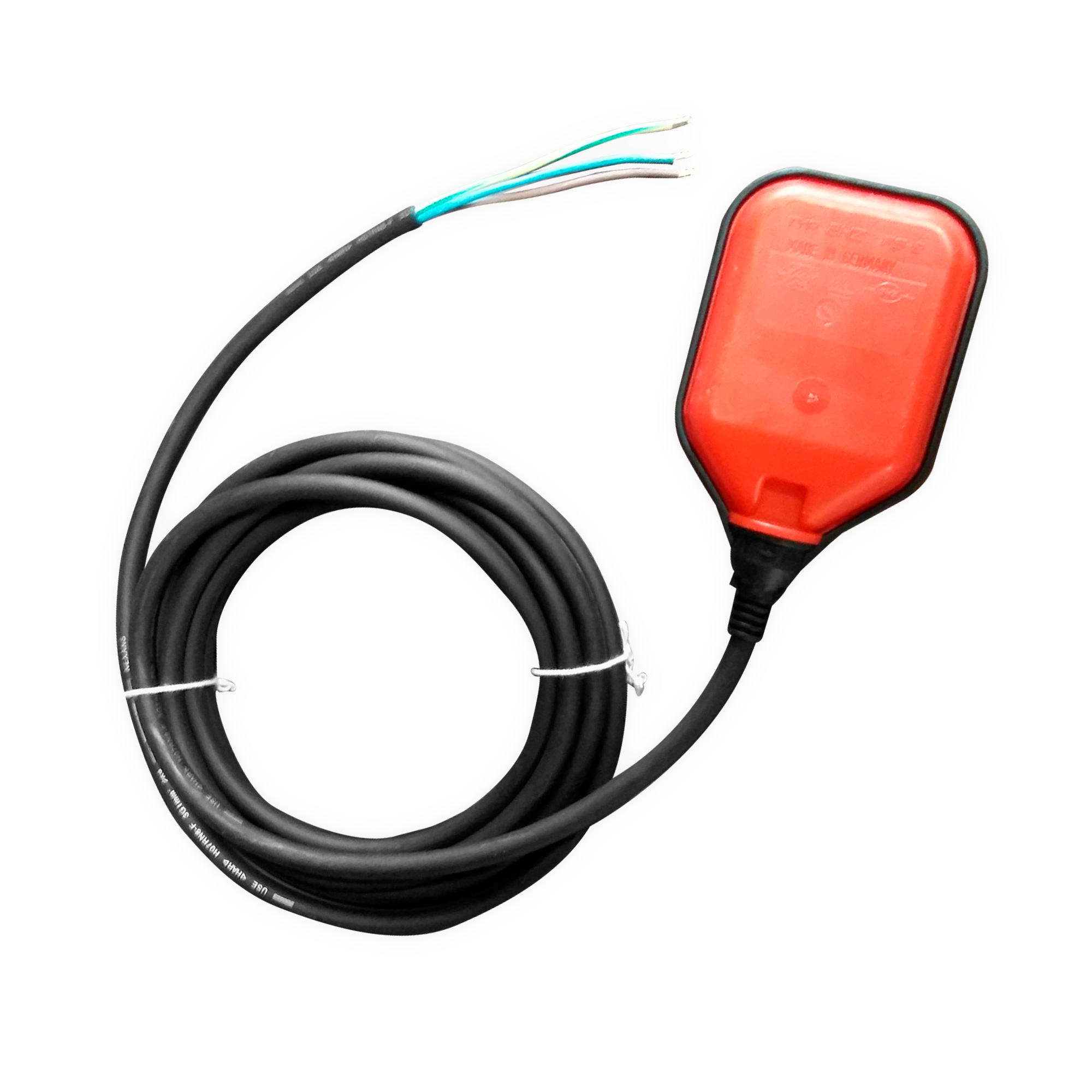

applicable up to 230 Vswitching hysteresis: 150 mmends stripped 100 mm, with wire end ferrulestype normally closed or normally open
applicable up to 230 Vswitching hysteresis: 150 mmends stripped 100 mm, with wire end ferrulestype normally closed or normally open
applicable up to 230 Vswitching hysteresis: 150 mmends stripped 100 mm, with wire end ferrulestype normally closed or normally open
For the error transmission or the alarm of levelwith mains failure reportwith mains plug and bar antennaplastic housing 80 x 80 mm9 free programmable reporting textsexclusive Mini-SIM card
AQUATO® TOPSELLER
AQUATO® menu structurefor AQUATO SBR, fixed bed and fluidized bed systems as well as trickling filter systems and plant beds4 cables with square plugs for the valves Possibility of pressure and current monitoringintegrated power failure notificationuse for 3 or 4 valve manifoldsoptional connection of a clear water pumpIOT capability / portal required
AQUATO® menu structureuniversal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds2 float switch inputs6 individually assignable outputseasy connection of existing valves and aggregatesinternal thermostat for control of a cabinet ventilation or heating systempower failure message as well as current & pressure monitoringdrain class C, N, D, D+P, D+H, D+P+Hconnection of an additional high water detectoralso suitable for plants of other manufacturers2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
submersible up to 12 m deepsuitable for pumping clean, chemically neutral waterfor use in cisterns and rainwater tanksintegrated pressure switch for automatically switching the pump on and offintegrated floating switch as dry-run protection
material: PE100, SDR11, PN10, butt-welded from mould fittings3x re-inforcded female thread 2"horizontal discharge connection suitable for installation of duplex pumping systemsfor rain- and greywater up to 17 m³/h flowperfect in combination with 2x pipework set DN 50
Housing is supplied without lock, key and without base plate for the compressor
including fastening setconnection pipe sideways G 1" malewithout connection cable
pre-assembled set consists of:1× ball valve 2"1× non-return valve 2"1× PP elbow 2"2× clamp coupling 2" × Ø 63 mm
