Overflow siphon w. odor trap and suction of surface waterWith integrated rodent barrier made of stainless steelconnections: DN100material: PEdimension: 425 x 560 x 110
material: PPtemperature range -10°C to +80°Cworking pressure 10 bar
material: PPtemperature range -10°C to +80°Cworking pressure 10 bar2 x o-ring seal
Complete connection set for professional connection of rainwater managers in the house. Set consists of:wall lead-throughfloating tapball valve 1" + ¾"armored hose ¾" L=300 / ÜW/AG DVGWarmored hose ¾" L=500 / ÜW/AG DVGWPE pipe 32x3 12,5 mmes. PE screw jointmounting materialidentification sticker
with hand lockmax. operating temp. 95°max. 0.5 bar
material: PPtemperature range -10°C to +80°Cworking pressure 10 bar
material: nylontemperature range: -30 °C to +95 °Cworking pressure: 16 bar
material: nylontemperature range: -30 °C to +95 °Cworking pressure: 16 bar
material: nylontemperature range: -30 °C to +95 °Cworking pressure: 16 bar

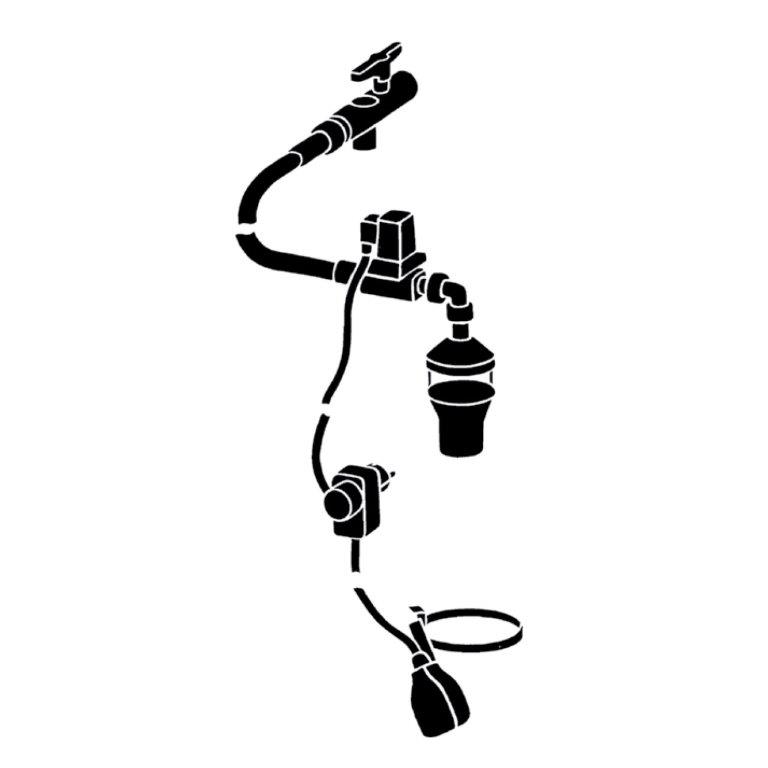

For drinking water replenishment, feeds the rainwater storage tank with water as needed during long dry periods.ready to use setfully automatic functionSet consists of:free drinking water outlet ½"intermediate plugfloat switch, 10 m cable
float retrofit for DTRON3 and E.SYBOX Diver pumpsfloat connection via NFC to the submersible pressure pump
Level indicators for rainwater systems. These devices are intended for level indication of water tanks. In areas where power is not available, battery operation is an option.VR-6A2: Digital display in 1-% steps
AQUATO® TOPSELLER
AQUATO® menu structurefor AQUATO SBR, fixed bed and fluidized bed systems as well as trickling filter systems and plant beds4 cables with square plugs for the valves Possibility of pressure and current monitoringintegrated power failure notificationuse for 3 or 4 valve manifoldsoptional connection of a clear water pumpIOT capability / portal required
AQUATO® menu structureuniversal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds2 float switch inputs6 individually assignable outputseasy connection of existing valves and aggregatesinternal thermostat for control of a cabinet ventilation or heating systempower failure message as well as current & pressure monitoringdrain class C, N, D, D+P, D+H, D+P+Hconnection of an additional high water detectoralso suitable for plants of other manufacturers2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
submersible up to 12 m deepsuitable for pumping clean, chemically neutral waterfor use in cisterns and rainwater tanksintegrated pressure switch for automatically switching the pump on and offintegrated floating switch as dry-run protection
material: PE100, SDR11, PN10, butt-welded from mould fittings3x re-inforcded female thread 2"horizontal discharge connection suitable for installation of duplex pumping systemsfor rain- and greywater up to 17 m³/h flowperfect in combination with 2x pipework set DN 50
Housing is supplied without lock, key and without base plate for the compressor
including fastening setconnection pipe sideways G 1" malewithout connection cable
pre-assembled set consists of:1× ball valve 2"1× non-return valve 2"1× PP elbow 2"2× clamp coupling 2" × Ø 63 mm
